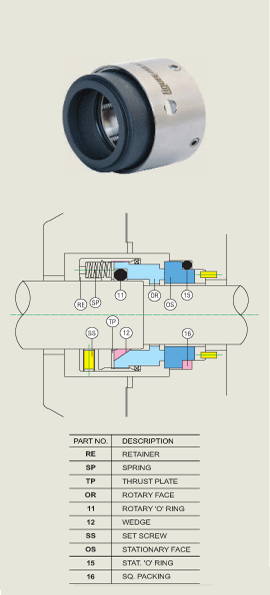

VERSION LS-101-B

FEATURES:

• SINGLE SEAL

• BALANCED

• MULTIPLE SPRINGS

• INSIDE MOUNTED

• INDEPENDENT ON DIRECTION OF ROTATION

STANDARD M.O.C.:

• SEAL FACES:

  Carbon
  Ceramic
  Tungsten Carbide
  Silicon Carbide

• SECONDARY SEALS :

  LS-101-BO:  EPDM, Viton, FEP, Kalrez
  LS-101-BW: PTFE, GFT


• METAL PARTS :

  S.S. 316
  Alloy-20
  Hastalloy-C
  Titanium

• APPLICATIONS:

  Food & Pharmaceuticals Industries,
  Solvent Extractions & Oil Refineries,
  Chemical Industries etc.

• OPERATING LIMITS:

  Sizes:                    25mm to 150mm
  Pressure:              Upto 40 bars
  Temperature:        -20Deg.C to +280 Deg.C
  Speed:                  Upto 20m/s

Version LS-101B is single acting balanced multiple springs design seal widely used for high pressure applications. Use of quality materials ensures compatibility with respect to temperature withstanding capacity from -20deg.C to +280 Deg.C resulting in the use of this particular version in greater areas of operations
