       MECHANICAL SEAL DESIGNS Single Spring Version


Our Products

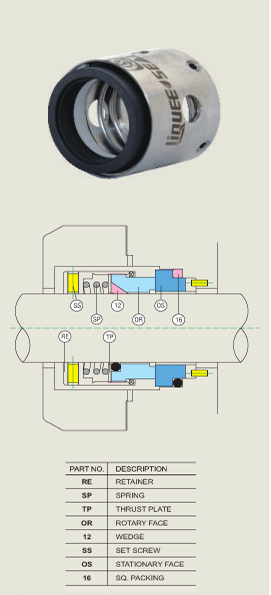

VERSION LS-101-S

FEATURES:

  • SINGLE SEAL

  • UNBALANCED

  • INSIDE MOUNTED

  • SINGLE HELICAL SPRING

  • INDEPENDENT ON DIRECTION OF ROTATION

STANDARD M.O.C.:

  • SEAL FACES:
    Carbon
    Ceramic
    Tungsten Carbide
    Silicon Carbide etc.

  • SECONDARY SEALS :
    LS-101-SO:  EPDM, Viton, FEP
    LS-101-SW: PTFE, GFT

  • METAL PARTS :
    S.S. 316,
    Alloy-20,
    Hastalloy-C,
    Titanium etc.

  • APPLICATIONS:
    Food & Pharmaceuticals Industries,
    Oil/Solvent Extraction Plants,
    Chemical Industries,
    Pulp and Paper Industries etc.

  • OPERATING LIMITS:
    Sizes:                    25mm to 110mm
    Pressure:              Upto 10 bars
    Temperature:        -20Deg.C to +200 Deg.C
    Speed:                  Upto 20m/s

Version LS-101-S is a single acting, unbalanced seal which is independent on direction ofrotation. It is a multi purpose design seal which is successfully used for sealing dirty medias.
