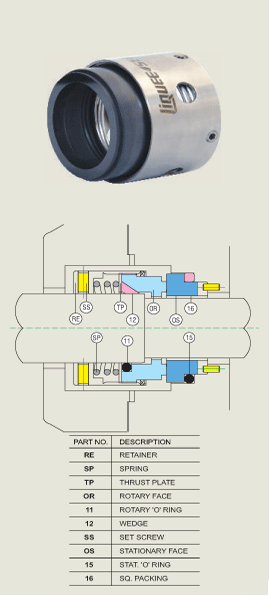

VERSION LS-101-SB

FEATURES:

• SINGLE SEAL

• BALANCED

• INSIDE MOUNTED

• SINGLE HELICAL SPRING

• INDEPENDENT ON DIRECTION OF ROTATION

STANDARD M.O.C.:

• SEAL FACES:

• Carbon
  Ceramic
  Tungsten Carbide
  Silicon Carbide

• SECONDARY SEALS :

  EPDM
  Viton
  PTFE
  GFT
  FEP

• METAL PARTS :

  S.S. 316
  Alloy-20
  Hastalloy-C etc.


• APPLICATIONS:

  Petrochemicals,
  Oil Extraction/Refinery plants,
  Boiler Feed pumps etc.

• OPERATING LIMITS:

  Sizes:                    25mm to 90mm
  Pressure:              Upto 25 bars
  Temperature:        -20Deg.C to +200 Deg.C
  Speed:                  Upto 20m/s

Version LS-101-SB is a single acting balanced and independent on direction of rotation seal developed for high temperature and high pressure applications. All components are held together by lock ring which helps in easier installation.
