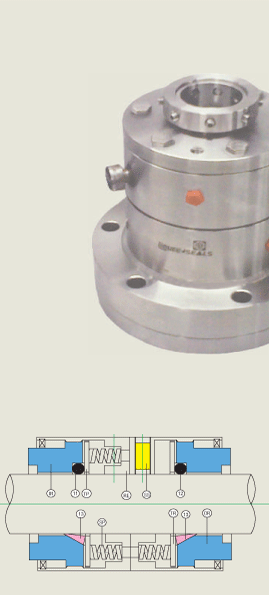

VERSION LS-101/LS-101B-AG

FEATURES:

• DOUBLE ACTING

• BACK TO BACK ARRENGEMENT

• UNBALANCED

• TOP/SIDE ENTRY AGITATORS

• PRESSURISED BARRIER FLUID CIRCULATION

• INDEPENDENT ON DIRECTION OF ROTATION

STANDARD M.O.C.:

• SEAL FACES: Carbon, Ceramic Tungsten Carbide,   Silicon Carbide

• SECONDARY SEALS : Vitcon, FEP, PTFE, GFT

• METAL PARTS : S.S. 316, Alloy-20, Hastalloy-C, Titanium

• APPLICATIONS: General Chemical Industries

• OPERATING LIMITS:

Sizes:                    25mm to 150mm
Pressure:              Upto 10 bars max.
Temperature:        Upto 200 Deg.C
Speed:                  Upto 500 RPM

Version LS-101B/LS-101B-AG is a double acting, balanced pre-assembled cartridge unit recommended for sealing media vapours. It is a pre-assembled cartridge unit used for sealing media vapours at higher pressure. The design
feature of this arrangement incorporates integrated bearing to take care of shaft run-outs at the seal point. Jacketed arrangement provided in this seal design ensures that seal area remains cool during its normal operations. Circulation of the compatible barrier fluid at 2kg/cm2 higher pressure than the pressure of the media vapours to be sealed is recommended for proper lubrication to the seal faces.
