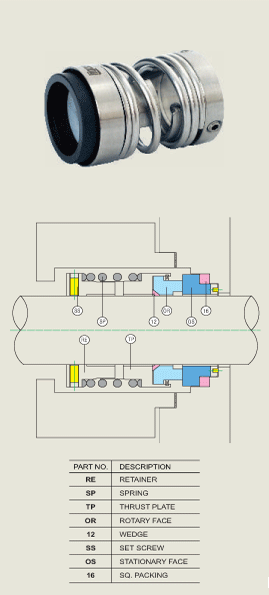

VERSION LS-105

FEATURES:

• SINGLE SEAL

• UNBALANCED

• INSIDE MOUNTED

• SINGLE HELICAL SPRING

• INDEPENDENT ON DIRECTION OF ROTATION

STANDARD M.O.C. :

• SEAL FACES:
  Carbon
  Tungsten Carbide
  Silicon Carbide

• SECONDARY SEALS :
  PTFE
  GFT
  FEP

• METAL PARTS :
  S.S. 316,              Alloy-20,
  Hastalloy-C etc.

• APPLICATIONS:
  Petrochemicals
  Oil Extractions & Refineries
  Soap Industries etc.


• OPERATING LIMITS: Sizes:                    25mm to 110mm
  Pressure:              Under vacuum to 10 bars
  Temperature:        upto 280Deg.C
  Speed:                  Upto 20m/s

Version LS-105 is specially design and develop for sealing high temperature mediaslike Fatty Acids, Hot Oils, Hot Water etc. Drive lugs provided in this version ensure torque transmission from drive collar to spring holder and seal faces. It helps in providing extra positive drive.
