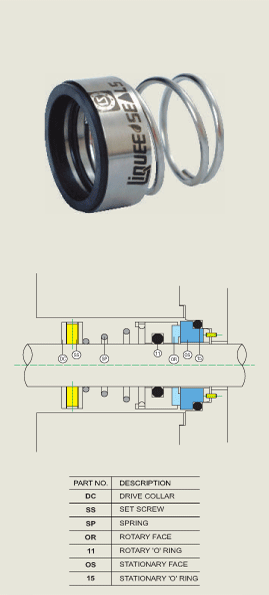

VERSION LS-201

FEATURES:

• SINGLE SEAL

• UNBALANCED

• INSIDE MOUNTED

• CONICAL SPRING

• DEPENDENT ON DIRECTION OF ROTATION

STANDARD M.O.C.:

• SEAL FACES:

  Carbon
  Stellite
  Ceramic
  Tungsten Carbide
  Silicon Carbide

• SECONDARY SEALS :

  Nitrile
  EPDM
  Viton

• METAL PARTS :

  S.S. 316



• APPLICATIONS:

  Water Pumps
  Chemical Process Pumps
  Sewage Pumps
  submersible Pumps



• OPERATING PARAMETERS:

  Sizes:                    12mm to 80mm
  Pressure:              Upto 8 bars
  Temperature:      -20Deg.C to +130 Deg.C
  Speed:                  Upto 20m/s
  Axial Movement: +/- 1.0mm

DESCRIPTION
Version LS-201 is a single conical spring, unbalanced seal which is dependent on direction of rotation from the drive-end. This seal is rugged, reliable and covers wide range of applications. Its user friendly, easy to install and maintain
