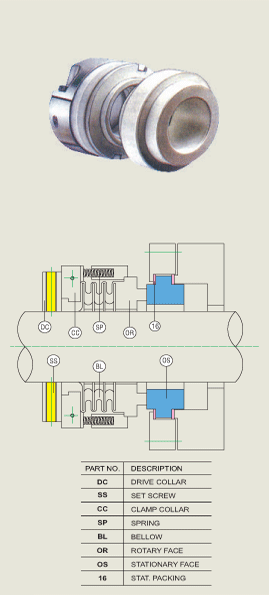

VERSION LS-401

FEATURES:

• SINGLE SEAL

• MULTIPLE SPRINGS

• BELLOW TYPE

• OUTSIDE MOUNTED

• INDEPENDENT ON DIRECTION OF ROTATION

STANDARD M.O.C.:

• SEAL FACES:

  LS-401 : GFT/CERAMIC, CFT/CERAMIC
  LS-402 : GFT/CERAMIC, SIC/CERAMIC, SIC/SIC, CARBON/CERAMIC

• SECONDARY SEALS :

  PTFE, GFT


• METAL PARTS :

  S.S. 316
  Alloy-20
  Hastalloy-C
  Titanium
  Nickle

• APPLICATIONS:

  Extremely Corrosive Media

• OPERATING LIMITS:

  Sizes:                    16mm to 90mm
  Pressure:              Upto 5 bars
  Temperature:        -20Deg.C to +150 Deg.C
  Speed:                  Upto 15m/s

Versions LS-401 & LS-402 are single acting, outside mounted multiple spring designs, bellow type seals which are exclusively designed for sealing highly corrosive liquids like
concentrated acids, caustics and chemically active organic component. All metallic components, clamping ring and springs doesn’t come in contact with media.
