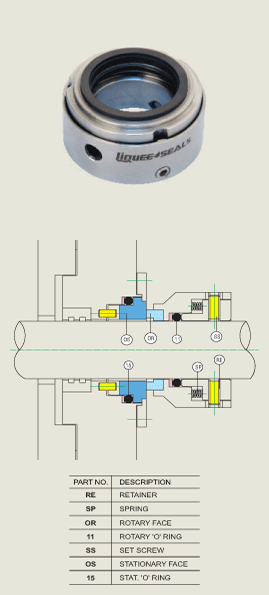

VERSION LS-501-RB

FEATURES:

• SINGLE SEAL

• REVERSE BALANCED

• MULTIPLE SPRINGS

• OUTSIDE MOUNTED

• INDEPENDENT ON DIRECTION OF ROTATION

STANDARD M.O.C.:

• SEAL FACES:

  Carbon
  Ceramic
  Tungsten Carbide
  Silicon Carbide

• SECONDARY SEALS :

  EPDM
  Viton
  FEP

• METAL PARTS :

  S.S. 316
  Alloy-20
  Hastalloy-C
  Titanium

• APPLICATIONS:

  Food & Pharmaceuticals Industries,
  Solvent Extractions & Oils Refineries Plants,
  Chemical Industries
  Sugar Industries, Pulp & Paper Industries etc.

• OPERATING LIMITS:

  Sizes:                    25mm to 150mm
  Pressure:              Vacuum to 10 bars
  Temperature:        -20Deg.C to +150 Deg.C
  Speed:                  Upto 20m/s

Version LS-501RB is single reverse balanced multiple springs externally mounted design seal widely used for corrosive applications as the metallic parts of this seal do not come in contact with media to be sealed. It can also be used in pumps where the limitations in the stuffing box cavity exists for internal mounting of the seal. Pressure acting in the opposite direction is taken care of by inherent balanced design of this particular version.
