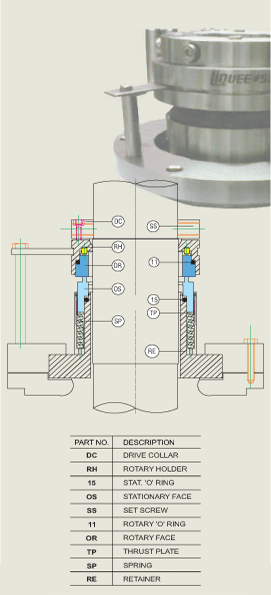

VERSION LS-900 / OS

FEATURES:

• SINGLE SEAL

• STATIONERY MULTIPLE SPRINGS DESIGN

• OUTSIDE MOUNTED

• DRY RUNNING

• INDEPENDENT ON DIRECTION OF ROTATION

STANDARD M.O.C.:

• SEAL FACES:

  Carbon vs. Silicon Carbide

• SECONDARY SEALS :

  Viton, FEP, PTFE, GFT

• METAL PARTS :

  S.S. 316,              Alloy-20,
  Hastalloy-C,         Titanium

• APPLICATIONS:

  Food & Pharmaceuticals Industries

• OPERATING LIMITS:

  Sizes:                    25mm to 200mm
  Pressure:              Upto 10 bars max.
  Temperature:        Upto 150 Deg.C
  Speed:                  Upto 300 RPM
  Shaft run-out        Upto 5mm

Version LS-900 / OS is a single acting, multiple springs design, outside mounted   dry running seal commonly recommended for top entry agitators handling food or pharmaceutical medias. This specific design is recommended for higher sealing pressure as well as for higher shaft run-outs. All other characteristics and features are according to our Version LS-900-DRS.
