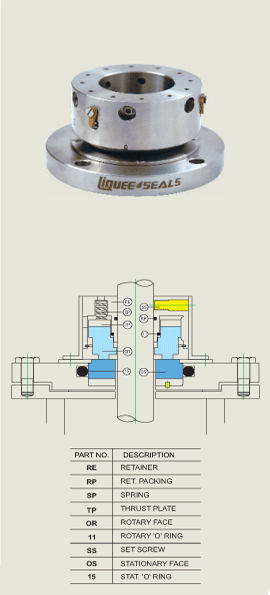

VERSION LS-900

FEATURES:

• SINGLE SEAL

• MULTIPLE SPRING DESIGN

• REVERSE BALANCED

• OUTSIDE MOUNTED

• DRY RUNNING

• INDEPENDENT ON DIRECTION OF ROTATION

STANDARD M.O.C.:

• SEAL FACES:

  Carbon vs. Silicon Carbide

• SECONDARY SEALS :

  Viton, GFT

• METAL PARTS :

  S.S. 316,              Alloy-20
  Hastalloy-C,                  Titanium


• APPLICATIONS:

  Food & Pharmaceuticals Industries

• OPERATING LIMITS:

  Sizes:                    25mm to 200mm
  Pressure:              Vacuum upto 5 bars
  Temperature:        Upto 150 Deg.C
  Speed:                  Upto 300 RPM

Version LS-900-DRS is a single acting, multiple springs, outside mounted reverse balanced dry running seal independent on direction of rotation commonly used in case of top entry agitators for food and pharmaceutical industries where contamination of the media inside the agitator with any other liquid is not permissible. This particular sealing arrangement do not required any external lubrication to the seal faces. The combination of metal impregnated carbon v/s. silicon carbide wear faces is recommended for dry running applications.
