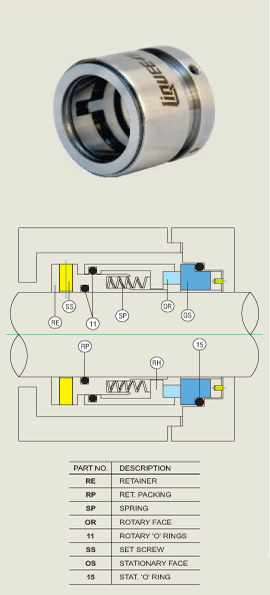

VERSION LS-9000
FEATURES:

• SINGLE SEAL

• BALANCED

• MULTIPLE SPRINGS

• INSIDE MOUNTED

• INDEPENDENT ON DIRECTION OF ROTATION

STANDARD M.O.C.:

• SEAL FACES:

  Carbon
  Ceramic
  Tungsten Carbide
  Silicon Carbide

• SECONDARY SEALS :

  EPDM,
  Viton
  FEP


• METAL PARTS :

  S.S. 316
  Alloy-20
  Hastalloy-C
  Titanium


• APPLICATIONS:

  Food & Pharmaceuticals Industries, Solvent Extractions & Oil Refineries, Chemical Industries, Sugar Industries, Pulp & Paper Industries etc.

• OPERATING LIMITS:

  Sizes:                    25mm to 90mm
  Pressure:              Upto 20 bars
  Temperature:        -20Deg.C to +200 Deg.C
  Speed:                  Upto 15m/s

Version LS-9000 is single balanced non clogging multiple springs internally mounted design seal specifically developed for sealing medias containing solids or with high viscosities. The springs are protected from media which ensures that there is no sticking or clogging problems during operations. In this type of version springs never come in contact with the media to be sealed. This prevents the occurrence of sticking or clogging problems. This unique feature make its design rugged and reliable.
