       MECHANICAL SEAL DESIGNS Multiple Spring Version


Our Products

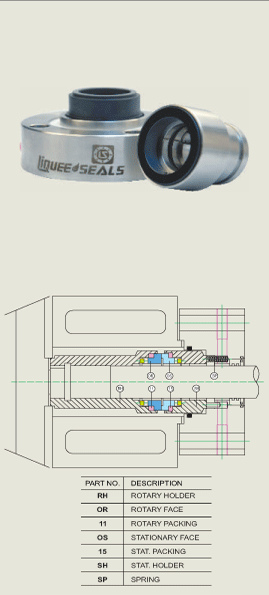

VERSION LS-901

FEATURES:

  • SEMI CARTRIDGE SINGLE SEAL

  • STATIONERY MULTIPLE SPRING DESIGN

  • BALANCED

  • INSIDE MOUNTED

  • INDEPENDENT ON DIRECTION OF ROTATION

STANDARD M.O.C.:

  • SEAL FACES:

    Carbon
    Tungsten Carbide
    Silicon Carbide

  • SECONDARY SEALS :

    Viton
    GFT
    Graphoil
    Kalrez

  • METAL PARTS :

    S.S. 316,                        Alloy-20,
    Hastalloy-C,                  Titanium.

  • APPLICATIONS:

    Petroleum Refineries,              Pharmaceuticals Industries,
    Solvent Extraction Plants,       Chemical Industries,
    Pulp and Paper Industries,      Mines & Shipping Industries etc.

  • OPERATING LIMITS:

    Sizes:                    25mm to 90mm
    Pressure:              Upto 45 bars
    Temperature:        Upto 280 Deg.C
    Speed:                  Upto 15m/s

Version LS-905 is a semi assembled cartridge unit, stationery multiple springs design seal successfully used in conventional stuffing box of centrifugal pumps handling heavy duty applications at higher pressure and temperature. Easy to install and maintain. Semi assembled cartridge construction ensures low concentricity of components involved. Use of universal materials make them suitable for a wide range of applications. This version is equipped with the desired auxiliary connections.
