       MECHANICAL SEAL DESIGNS Single Spring Design


Our Products

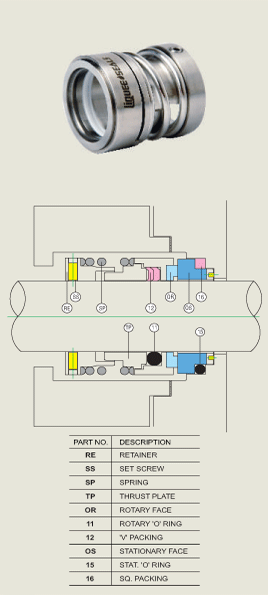

VERSION LS-206

FEATURES:

  • SINGLE SEAL

  • UNBALANCED

  • INSIDE MOUNTED

  • SINGLE HELICAL SPRING

  • INDEPENDENT ON DIRECTION OF ROTATION

STANDARD M.O.C.:

  • SEAL FACES:

    Carbon
    Ceramic
    Tungsten Carbide
    Silicon Carbide

  • SECONDARY SEALS :

    EPDM
    Viton
    PTFE
    GFT
    FEP

  • METAL PARTS :

    S.S. 316
    Alloy-20
    Hastalloy-C etc.

  • APPLICATIONS:

    Slurries,                                   Effluents,
    Alkalies,                                  Acids,
    Solvents,                                 viscous liquids etc.

  • OPERATING LIMITS:

    Sizes:                    16mm to 90mm
    Pressure:              Upto 10 bars
    Temperature:        -20Deg.C to +150 Deg.C
    Speed:                  Upto 20m/s

Version LS-206 is a single acting unbalanced Bi-directional seal widely used for highly viscous/abrasive and dirty medias. Drive lugs provided in this version ensure torque transmission from drive collar to spring holder and seal faces. It helps in providing extra positive drive when used for viscous and slurry applications. Dynamic sealing is achieved with the help of PTFE double “V” packings. Interchangeability of seal components helps to minimise the stock.
