       MECHANICAL SEAL DESIGNS Metallic Springs Seal


Our Products

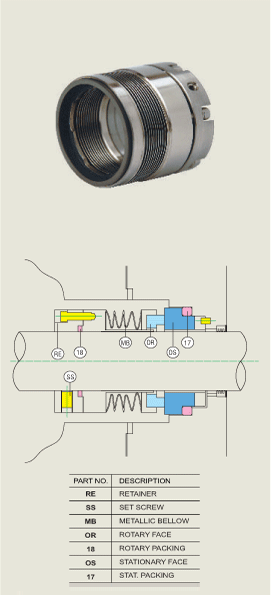

LS-801

FEATURES:

  • SINGLE SEAL

  • BALANCED

  • WELDED METALLIC BELLOW

  • INSIDE MOUNTED

  • INDEPENDENT ON DIRECTION OF ROTATION

STANDARD M.O.C.:

  • SEAL FACES:
    Carbon
    Tungsten Carbide
    Silicon Carbide

  • SECONDARY SEALS :

    FEP, Graphoil

  • METAL PARTS :

    S.S. 316
    Hastalloy-C
    Carpenter-42

  • WELDED METAL BELLOW:

    Hastalloy-C
    AM-350

  • APPLICATIONS :

    Petroleum Refineries,
    Solvent Extractions & Oil Refineries etc.

  • OPERATING LIMITS:

    Sizes:                    28 to 55mm
    Pressure:              Upto 15 bars
    Temperature:        Upto 350 Deg.C
    Speed:                  Upto 20m/s

Version LS-801 is a welded metal bellow seal popularly used in petrochemicals and refineries for high temperature applications. Metal Bellow feature ensures the temperature resistance capacity of this version upto 350Deg.C. Flexibility incorporated in the metallic bellows eliminates the use of conventional springs in this version.
